품명 5. GQ12B-10/J/S

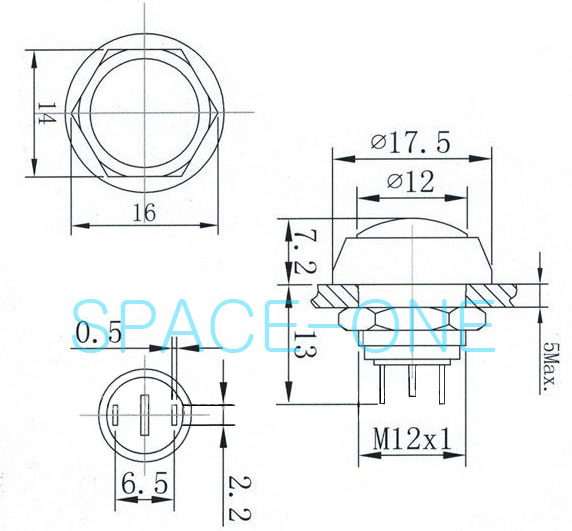

Mounting Hole Size:Φ12mm
Switch Rating:2A/36VDC
Contact Configuration: 1NO (1NC can be customized)
Operation Type: Momentary
The Front Shape: Domed
The Crust Material: Stainless Steel
Protection Degree:IP65,IK08
Mechanical lifetime:1,000,000
Pin Terminal:2×0.5mm

Operating Temperature : -20 ~ +55

Torque : 5~14Nm

Material : Contact - Silver alloy
Button - Stainless steel:Mirror surface, Spiral pattern
Base - PBT
Mechanical life : >1,000,000 times
Electrical life : >200,000 times
