모델명 :

- Red button, Red led         :  SO4126-8111-18

- Green button, Green led   :  SO4126-8127-18

- Yellow button, Yellow led  :  SO4126-8136-18

- Blue button, Blue led        :  SO4126-8144-18

• Rating value : 5A 250VAC, 8A 125VAC
• Mechanical life : 1,000,000 times
• Electrical life : 800,000 times
• Contact resistance : <50MΩ
• Insulation resistance : >100MΩ
• Withstand Voltage : 1000V 50/60Hz. Last for 1min
• Base material : PBT
• Ambient temperature : -25℃ ~ +80℃
• Operating force : <6N

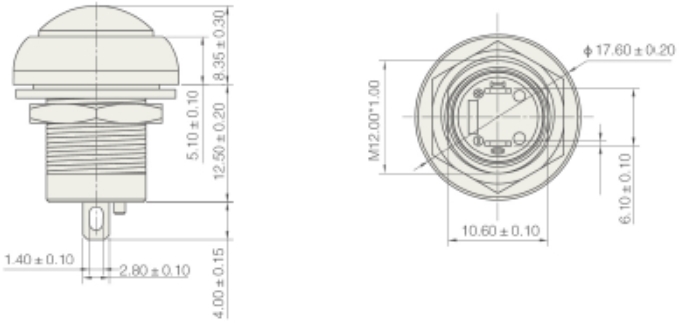

• Dimensions : Diameter : ￠12.0mm+0.2
• Installation : Bushing mount
• Waterproof grade : IP 67
• LED voltage : (No resister)
